EASTMAN KODAK - N░2 Folding Autographic Brownie (1924 - 1926)

Home
Folding cameras
Equipped with a Kodex N░0 shutter (T, B, 1/25s, 1/50s), this Kodak N░2 Folding (Autographic) Brownie has been manufactured from 1924 and 1926.

Another version, mounted with a Kodak Ball Bearing shutter was made from 1915 to 1923.

This camera has a meniscus lens. Four apertures are offered, labelled from 1 to 4.

The focusing process is very simple and can be done by moving the lens back and forth on its tray. An indicator with 2 positions (2,50m and 30m) is fixed on the cradle of the apparatus and gives an estimate of the distance to the subject.

The back side of this camera has the famous "Autographic" window. Unfortunately, the stiletto  which is normally fixed on the top of it has disappeared (this occurs very often on this model).

This camera used format 120 rollfilm.

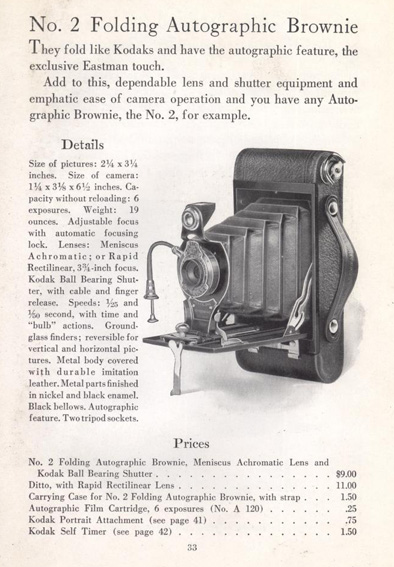

See the original user manual
